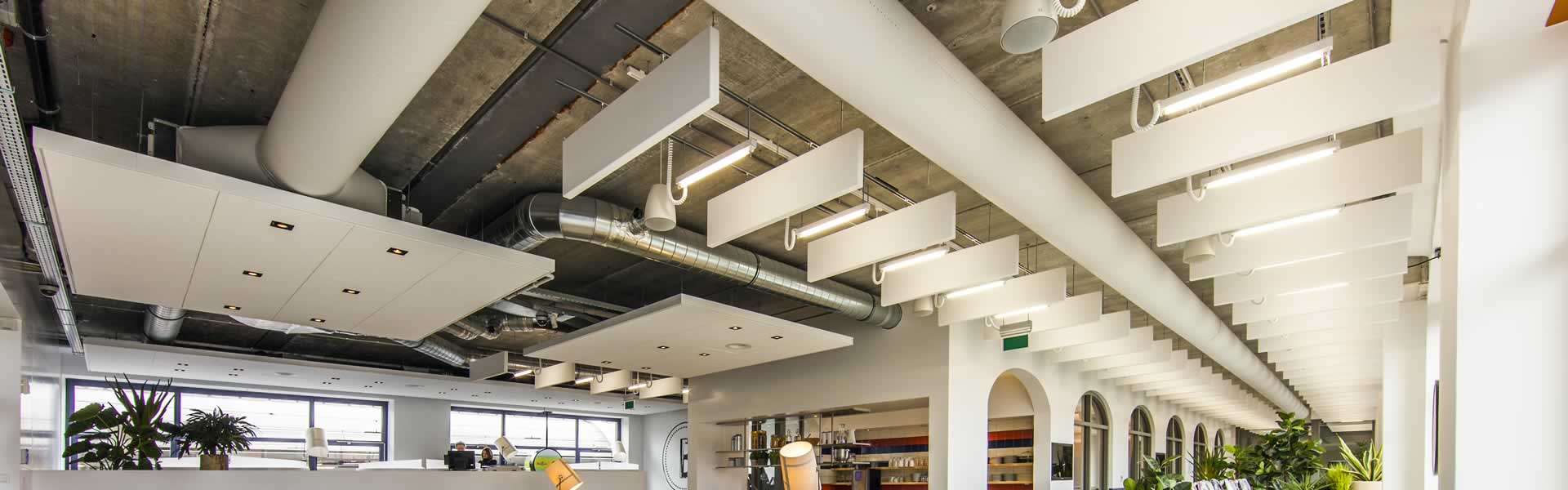

Rockfon - Contour

Rockfon Contour is an acoustic baffle made of a 50 mm stone wool panel. Both sides are covered with an acoustic glass fleece which offers a nice smooth white surface. The edges are frame less and painted.

Rockfon Contour is an economic baffle which offers new opportunities of correcting acoustics in areas where frequent and unhindered access to service installations is required. It can be used alone or as a complement to an existing ceiling.

Rockfon Contour is a frameless baffle which offers a minimalistic edge underlined by an elegant bevel. Its smooth white surface is very long-lasting and ensures a good reflexion of light.

Just like every other Rockfon solution, Rockfon Contour offers the highest performance in sound absorption and contributes to reducing reverberation time and ambient sound level. It enables to reach the optimal level of acoustic comfort when a standard suspended ceiling cannot be used or for retrofit purposes when there is a need for increasing sound absorption without taking down existing installation. Rockfon Contour also brings acoustic correction to premises using thermal mass by enabling air to flow freely in the room.

Thanks to its numerous qualities, Rockfon Contour fully complies with stringent requirements in terms of protection of the Environment. It is recyclable and is also stamped with the Danish Indoor Climate Label.

Rockfon Contour is very fast and easy to install making it an economic and aesthetic solution.

Summary

Description	Edges	Dimensions (mm)	Colour	Texture	Light Reflection	α_w	NRC	Reaction To Fire
Stone wool panel Smooth white painted fleece Painted edges	AC	600 x 1 200	White	Smooth	79%	-	-	A1

Assortment

Edge detail	Module size (mm)
AC	1 200 x 600 x 50

Performance

Edge	Thickness (mm)	Suspension (mm)	α_w	NRC	Class
AC	50	-	-	-	-

Technical Data

Sound absorption

A_eq (m²/item) - Sound absorption is measured in accordance with ISO 354. Sound absorption data α_p, α_w and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area AT expressed in m²/item.

Light reflection

79% - Light reflection expressed in % is measured in accordance with ISO 7724-2.

Reaction to fire

Class A1 - Reaction to fire is classified in accordance with EN 13501-1. The fire protection properties of ROCKFON ceilings have been tested and classified in accordance with European norm EN 13501-2 and/or national norms depending on requirements in national building codes.

Humidity and sag resistance

up to 100% RH - ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). No acclimatisation is necessary.

Cleaning

Vacuum - Surface can be vacuum cleaned with a soft brush attachment

Hygiene

Stone wool provides no sustenance to micro-organisms - Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96:
